Wafer butterfly valves, both classes.

Ductile iron body, EPDM seat, SS304 disc. DN50 to DN1200. One body, two pressure classes — PN10 and PN16 differ only in disc thickness. Dispatch 7–15 days from Tianjin.

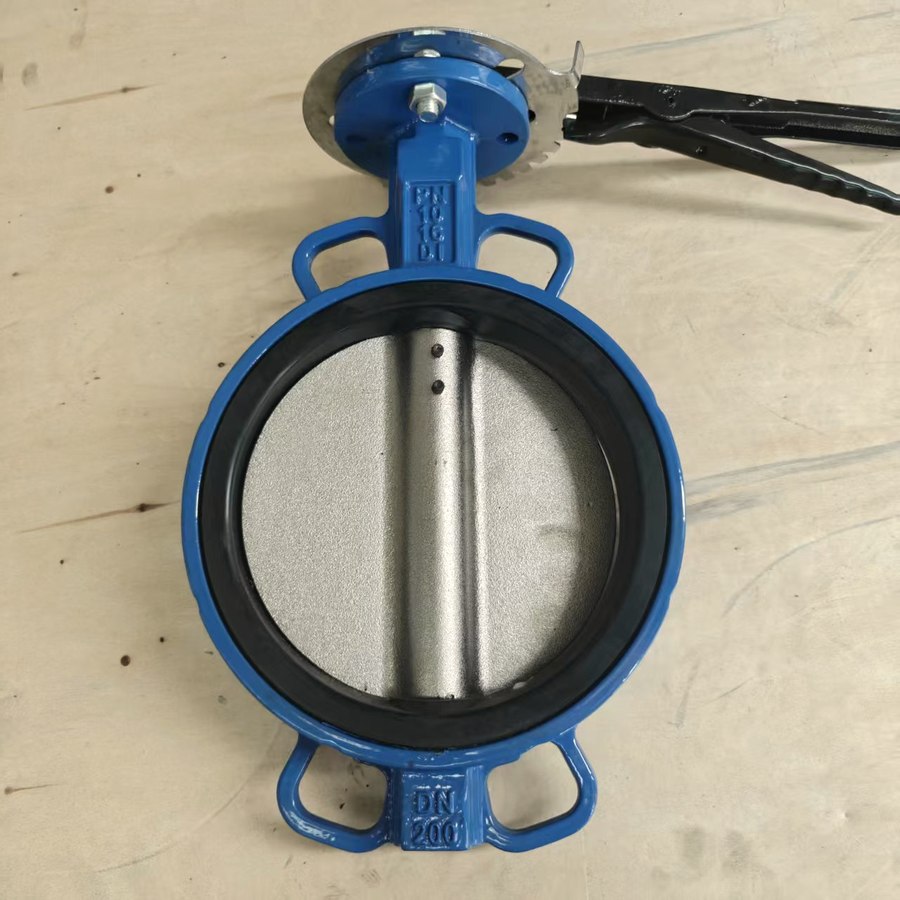

Wafer butterfly valve, ductile iron body, lever operated — Bore

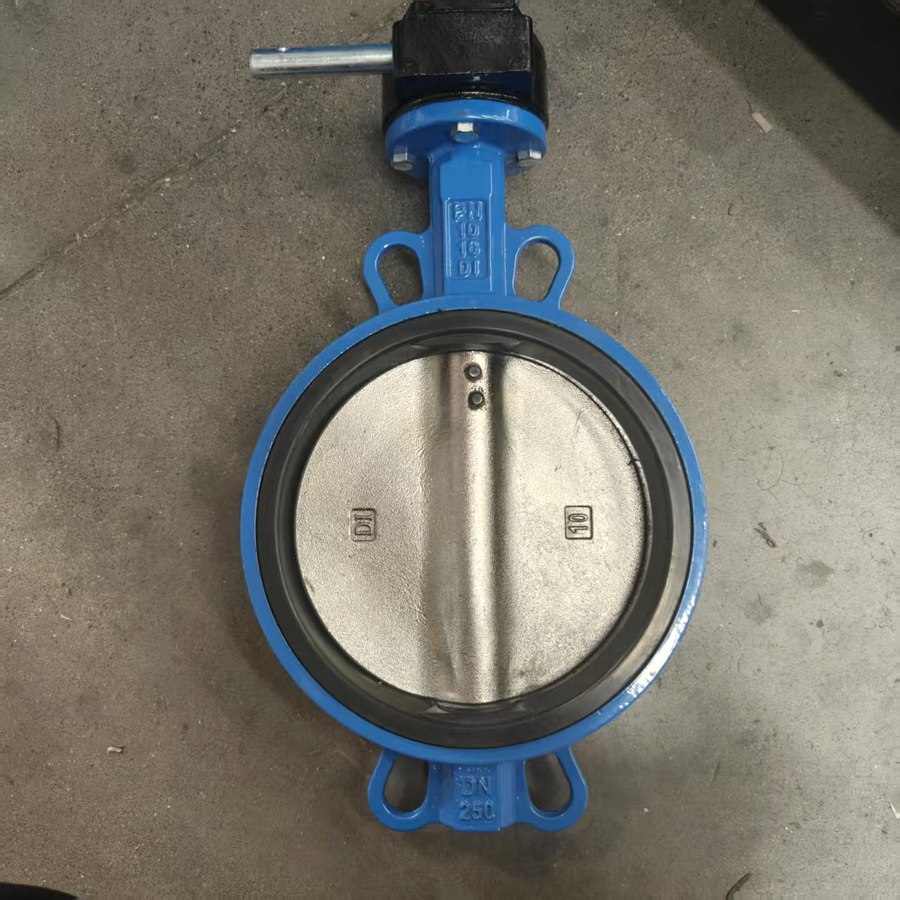

Wafer butterfly valve, disc detail — Bore

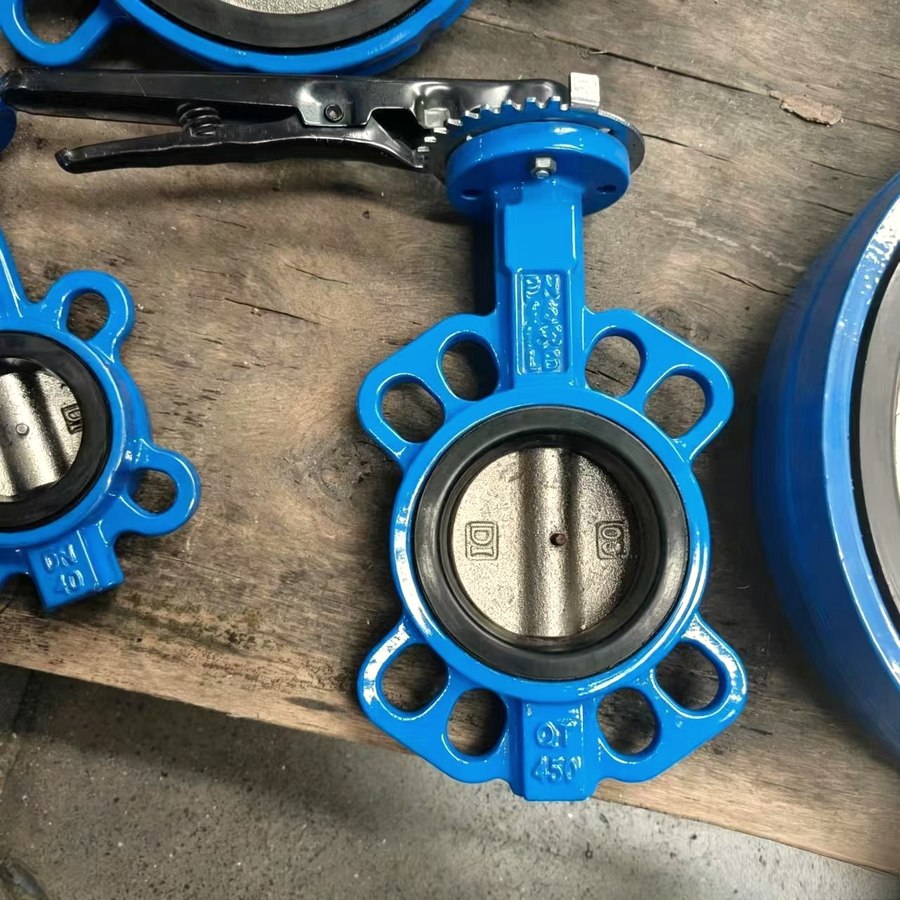

Wafer butterfly valve, ductile iron body — Body

Wafer butterfly valve, uncoated body — Body

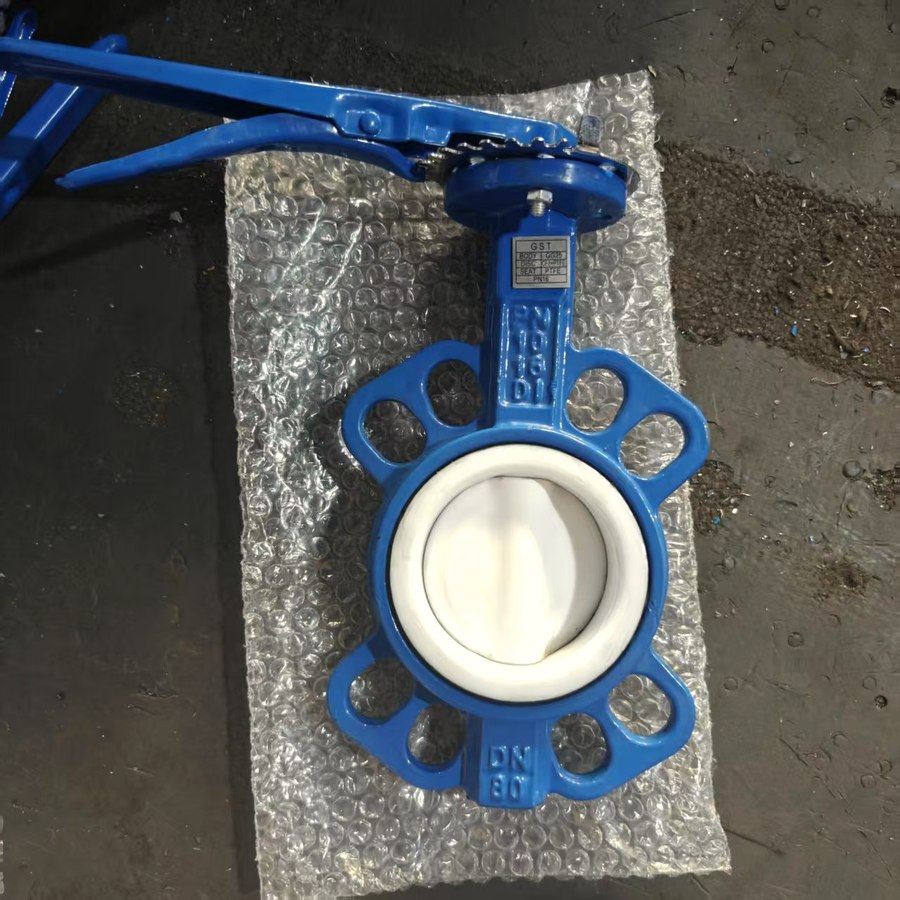

PTFE lined wafer butterfly valve, white liner — PTFE lined

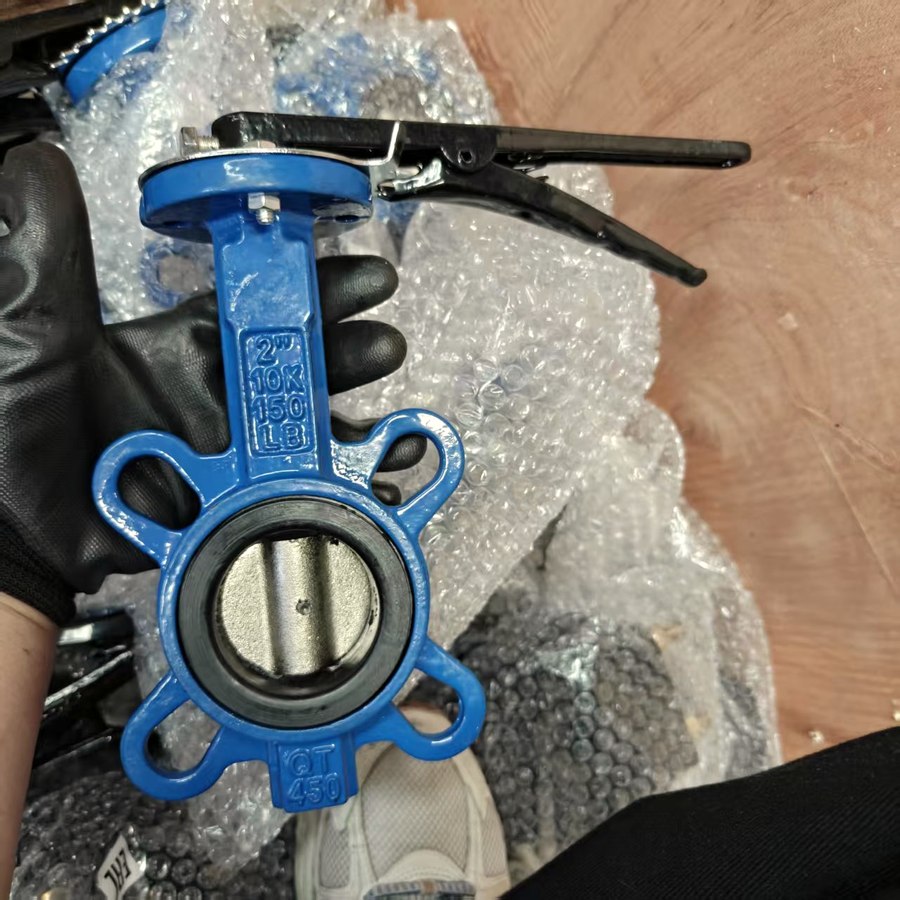

Wafer butterfly valve held in hand, DN cast on the body — Lever

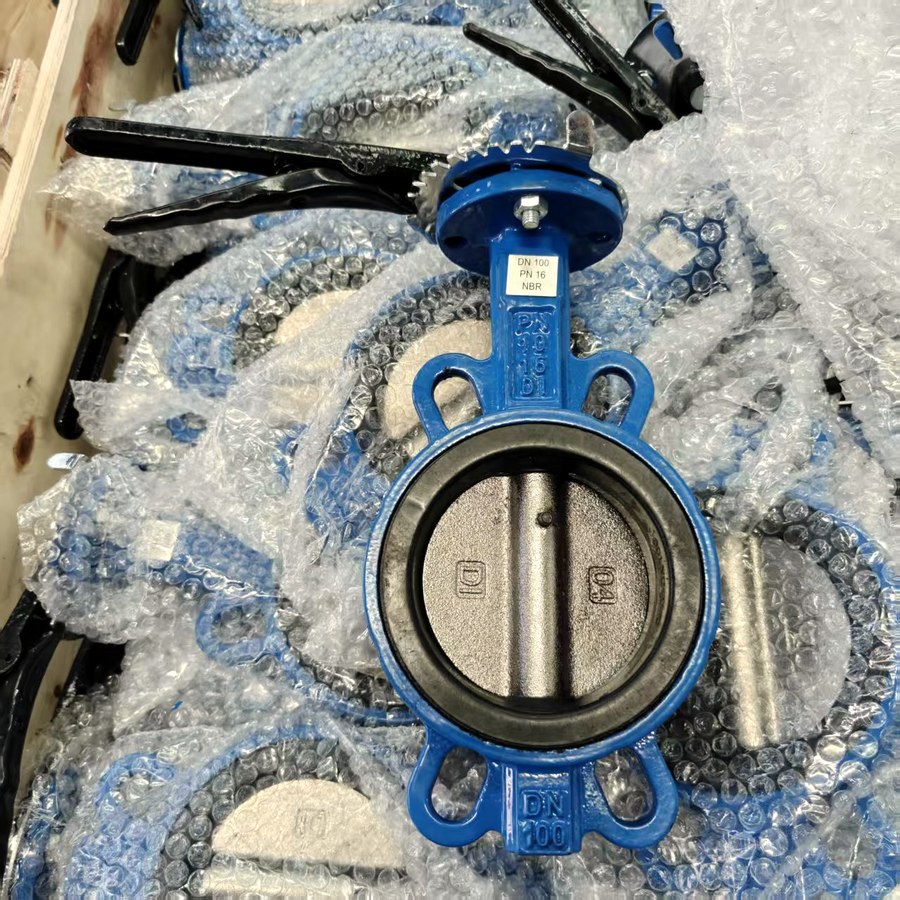

Packed wafer butterfly valves in bubble wrap — Packed

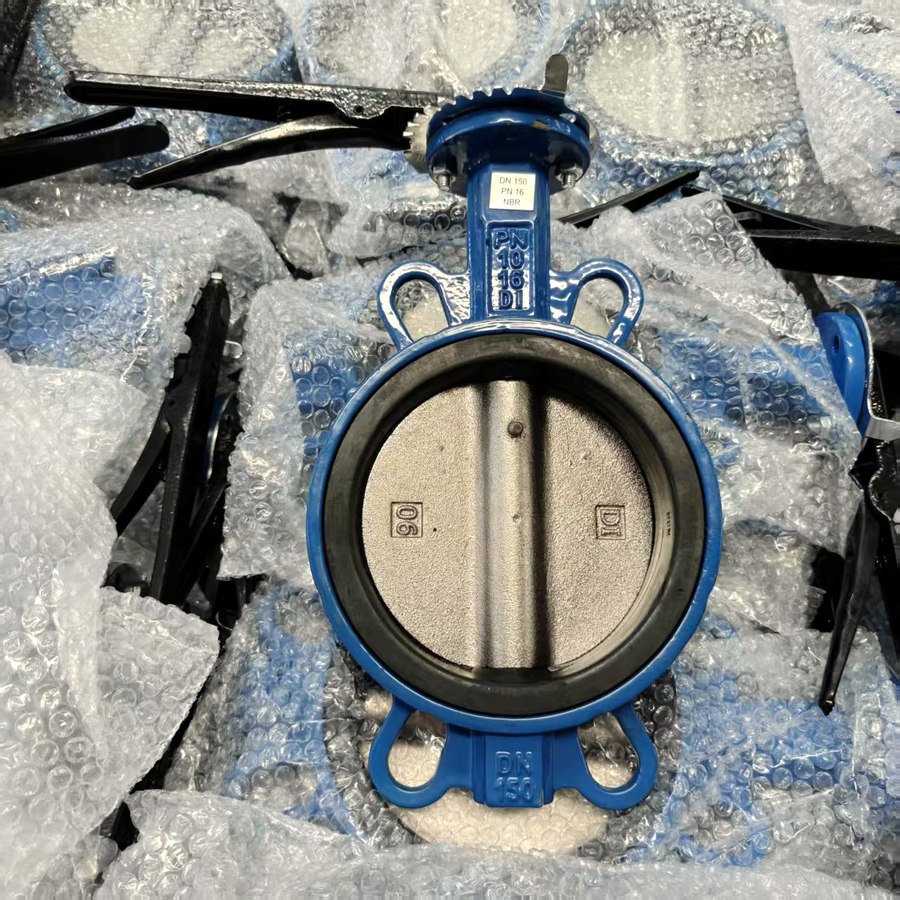

Wafer butterfly valves ready for dispatch — Ready

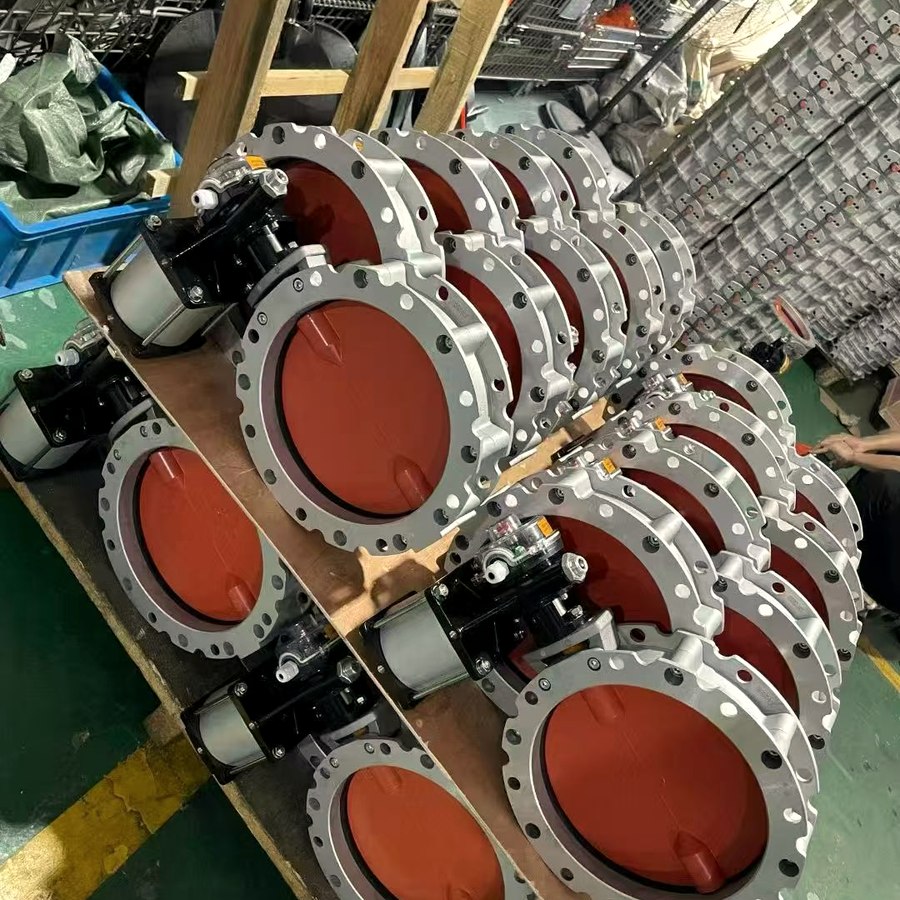

Racked wafer butterfly valves with red discs — Rack

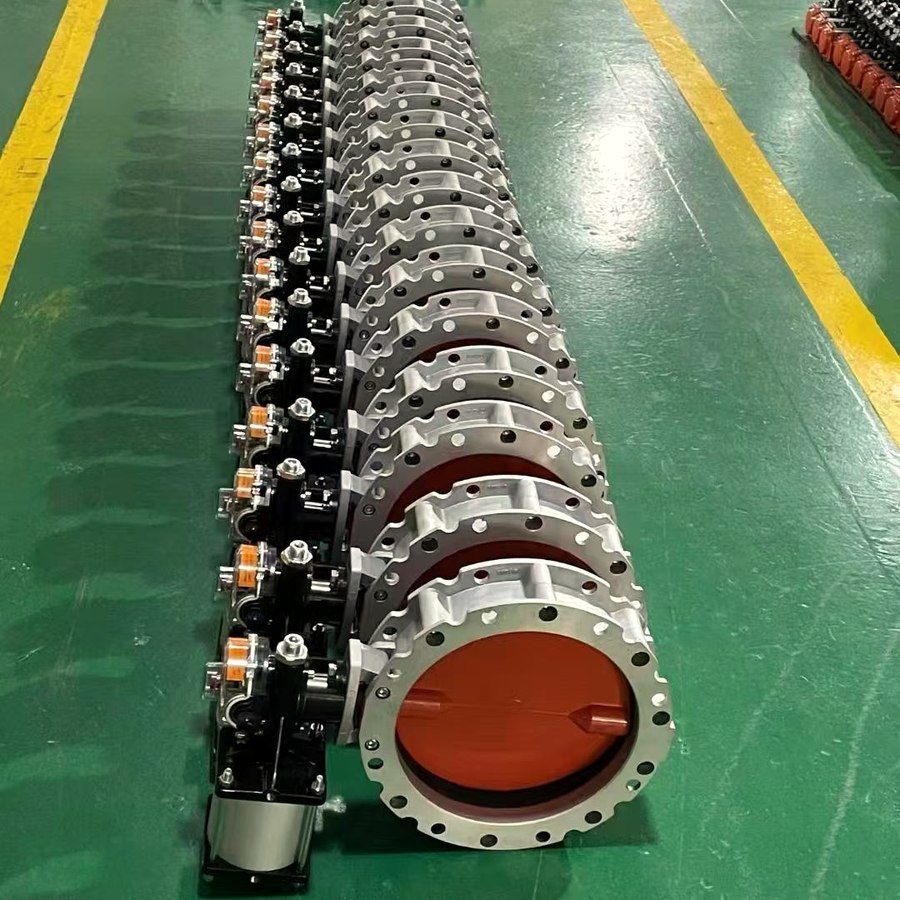

A row of assembled wafer butterfly valves on the floor — Batch

Three actuated wafer butterfly valves side by side — Actuated

One body, two classes

PN10 and PN16 use the same ductile iron body, seat and lever — only the disc is thicker for the higher class. The DN is cast into the body, so a mix-up at site is hard to miss.

Confirm availability and dispatch date when you enquire

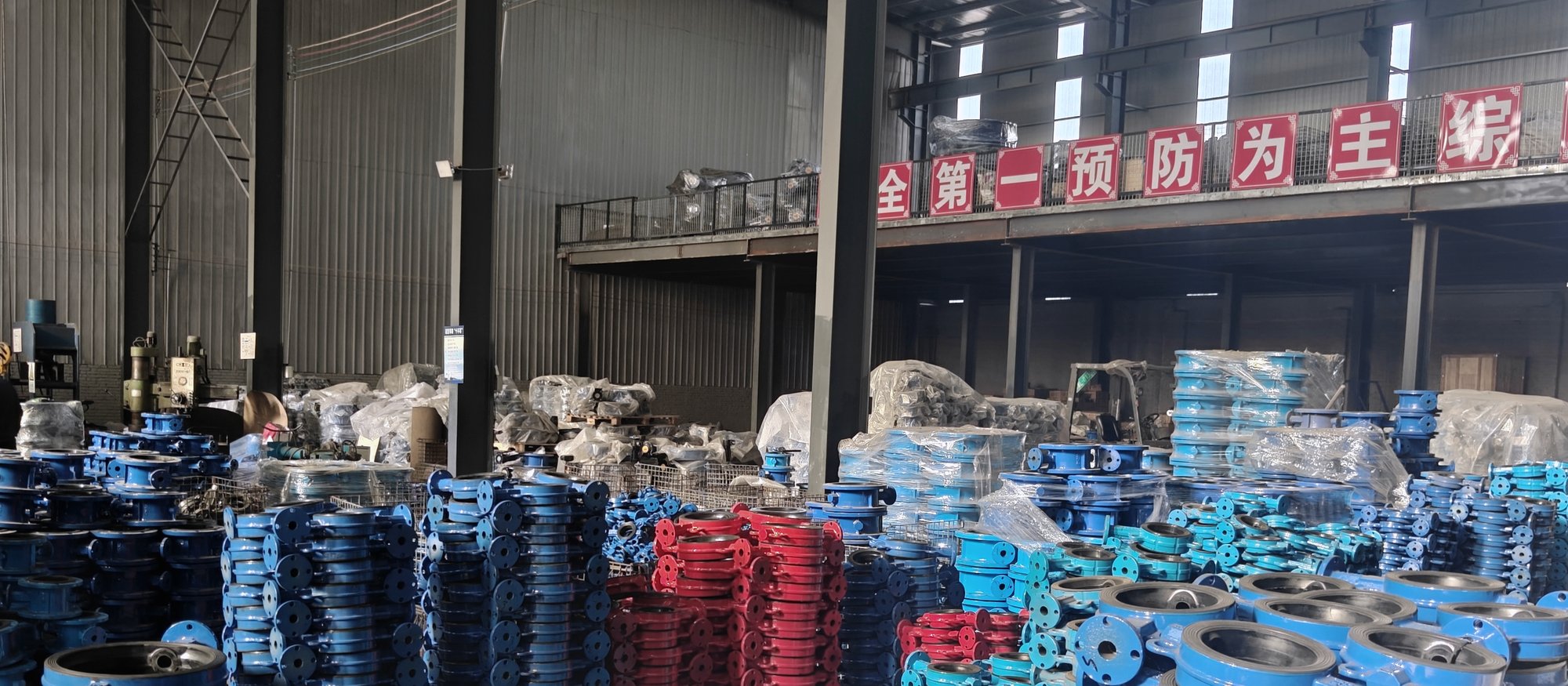

Stacked wafer butterfly valves in the assembly hall

Assembly hall · Tianjin

Finished valves in the yard, waiting on a packing list. Every unit is tested before it leaves this floor.

Size range: DN50 – DN1200

Pressure: PN10 · PN16

Body: Ductile iron GGG50

Seat: EPDM

Disc: SS304 / CF8

Sizes & prices

Eight sizes. Both pressure classes.

Prices are per piece, EXW Tianjin, in USD. Up to DN100 the two classes cost the same; above that PN16 carries a small surcharge, because the disc is thicker to hold the higher pressure.

Size	Net weight	PN10	PN16
DN50	2.2 kg	$4.69	$4.69
DN65	2.5 kg	$5.30	$5.30
DN80	3.2 kg	$6.53	$6.53
DN100	4.1 kg	$8.98	$8.98
DN125	5.7 kg	$12.65	$13.48
DN150	6.6 kg	$16.65	$17.89
DN200	10 kg	$28.38	$31.70
DN250	15 kg	$44.37	$49.63

On the order

What comes with every order.

One body

PN10 and PN16 are built on the same ductile iron casting. Going up a pressure class changes the disc, not the whole valve.

7–15 days

Packing and dispatch from Tianjin normally runs seven to fifteen working days. We confirm the exact date against current stock when we quote.

Per-batch testing

Every batch is pressure tested before it leaves. The test record travels with the shipment, not in a separate email.

Packing for sea

Individual bubble wrap, then carton or plywood case. Marks and labels to your instruction.

7–15
days Packing and dispatch, ex-works Tianjin

DN50
to DN250 Eight sizes, PN10 and PN16

PN10
PN16 Both pressure classes share one body — only the disc differs

Standards

What the paperwork says.

Quality system: ISO 9001:2015Certified quality management system
Factory audit: SGS-CSTC auditedOn-site audit of the production site
Material records: MTC per shipmentMill test certificate issued with each batch

Request a quote

Tell us the size and the quantity.

We reply with availability, unit price and a dispatch date — usually within one working day.
